Filter Dust with Chity

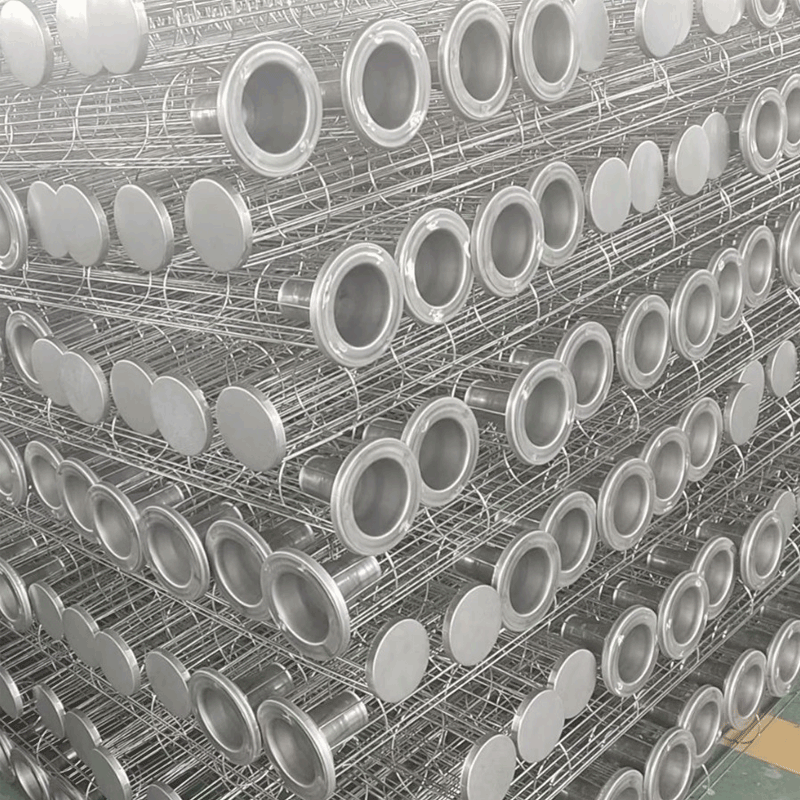

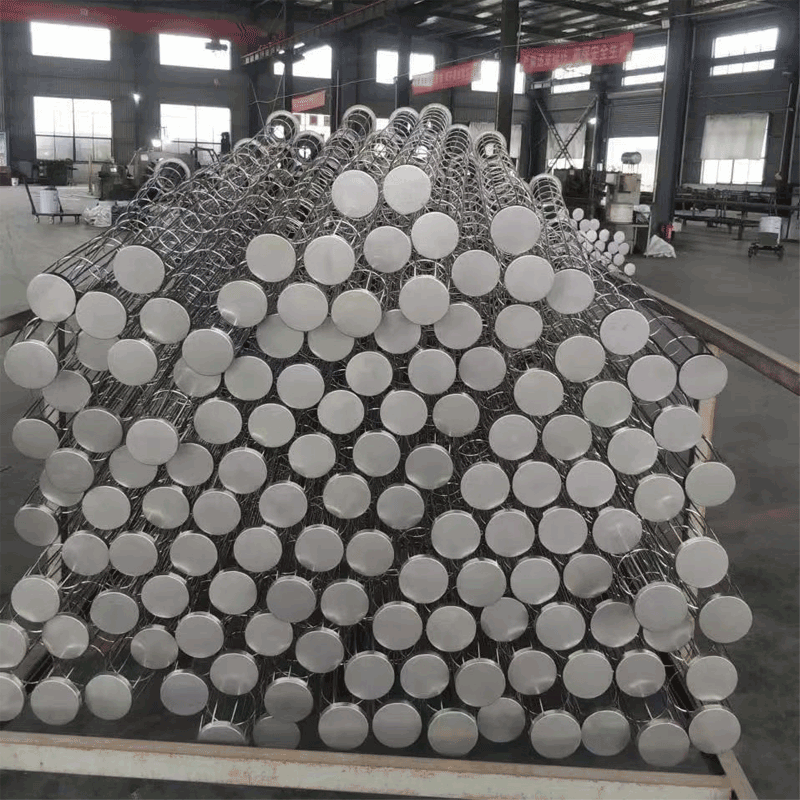

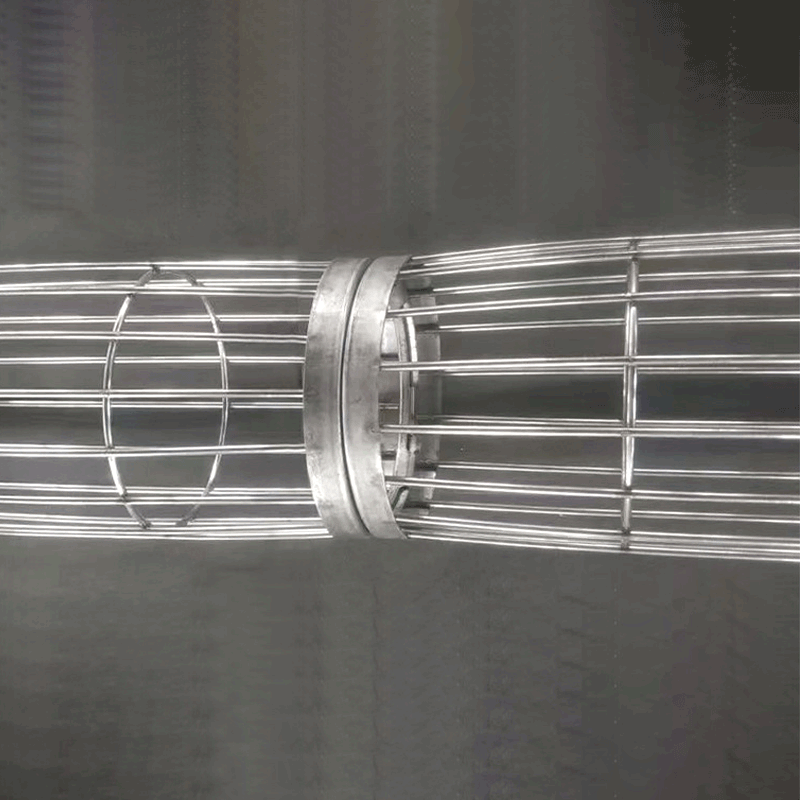

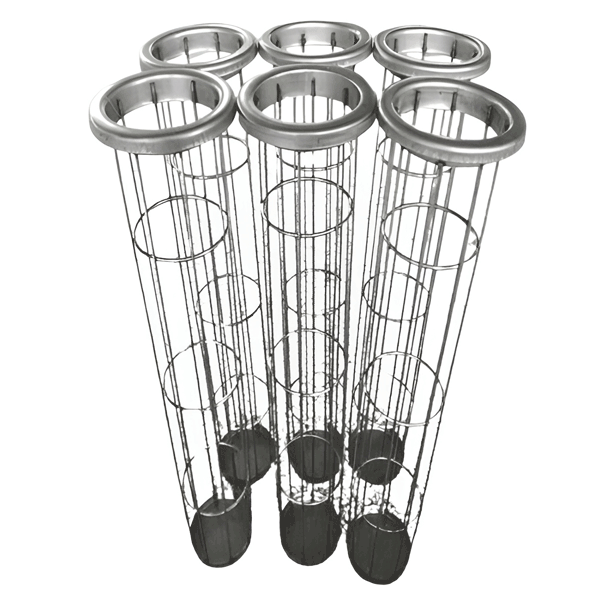

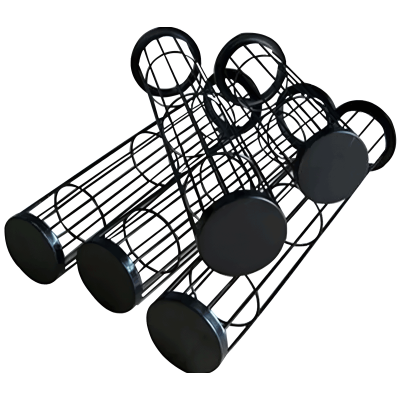

316L Stainless Steel Filter Bag Cage for Dust Collectors
| Categories | Filter Bag Cage and Support |
|---|---|
| Trademark/Brand | Chity |
| Model | 316 Stainless Steel |
| Material | 316L Stainless Steel |
| Venturi | Customized |
| Wire Diameter | 3.0/3.2/3.5/4.0mm |
| Number of Ribs | Customized |
| Update Time | Oct 31,2025 |
Detail Information
Introduction
Description
A corrosion-resistant support structure for dust collector filter bags, made of 316 stainless steel (16-18% Cr, 10-14% Ni, 2-3% Mo) to withstand acidic, chloride-rich, or high-temperature environments (up to 450°C). Offers superior mechanical strength and durability for abrasive applications, ensuring stable performance in industries like chemical plants, incinerators, and marine settings.
Key Features
>Cost-Effective Durability
– Austenitic structure (18-20% Cr, 8-10.5% Ni) balances affordability with moderate corrosion resistance for mildly acidic/dusty environments.
>Basic Corrosion Resistance – Handles non-chloride, low-corrosion settings (pH 3-8) but avoids chloride-rich/coastal applications to prevent pitting.
>Thermal Stability (≤400°C) – Stable for continuous use up to 400°C; avoid prolonged exposure to sulfides/high moisture.
>Abrasion-Resistant Design – Cold-rolled surface resists dust abrasion, supporting pulse-jet cleaning cycles without deformation.
>Lightweight & Recyclable – Lower density (7.93 g/cm³) vs. carbon steel, reducing energy use; 100% recyclable for sustainability.
Limitations
>Chloride Vulnerability – Prone to pitting/crevice corrosion in chloride-rich environments (e.g., coastal/chemical plants), limiting use in marine or desulfurization settings.
>Reduced High-Temp Strength – Carbide precipitation (450°C+) degrades corrosion resistance; unsuitable for sustained high-sulfur/moisture flue gas.
>Lower Mechanical Toughness – Yield strength (~205 MPa) underperforms vs. 316/2205 grades in heavy-abrasion or high-pressure pulse-jet systems.
