Industrial Cyclone Dust Collector and Separator

Industrial Cyclone Dust Collector and Separator

Industrial Cyclone Dust Collector and Separator
Industrial Cyclone Dust Collector and SeparatorIndustrial Cyclone Dust Collector and SeparatorIndustrial Cyclone Dust Collector and SeparatorIndustrial Cyclone Dust Collector and Separator
CategoriesCyclone Dust Collector
BrandChity
ModelCyclone
Material of ShellCarbon Steel/304 or 316L Stainless Steel
Thickness of Shell3mm/4mm/5mm
Discharge ValveRotary Airlock/Gate Valve/Heavy Hammer Flap Valve
Certification of MotorCE/CSA/UL/ATEX
Update TimeMay 1,2025
Detail Information

Introduction of Cyclone Dust Collector

Cyclone dust collector is an industrial air filtration system that uses centrifugal force to separate and remove large dust particles from an airstream before they reach the main filtration system. It operates by creating a high-speed rotating airflow inside a cylindrical or conical chamber, forcing heavier dust and debris to fall into a collection bin, while lighter, cleaner air exits through the top. Cyclone dust collectors are widely used in woodworking, metal processing, grain handling, cement manufacturing, and other industries dealing with large volumes of coarse dust. Cyclone dust collector is an efficient, cost-effective solution for managing large dust loads, reducing maintenance for secondary filters, and improving overall air quality in industrial settings.

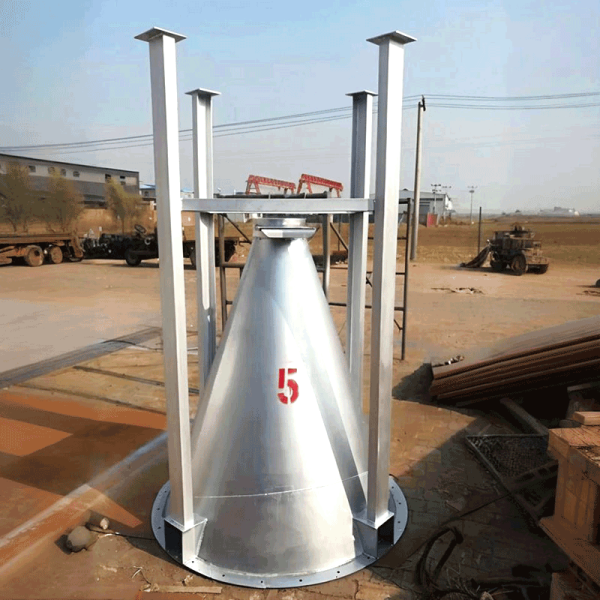

Industrial Cyclone Dust Collector

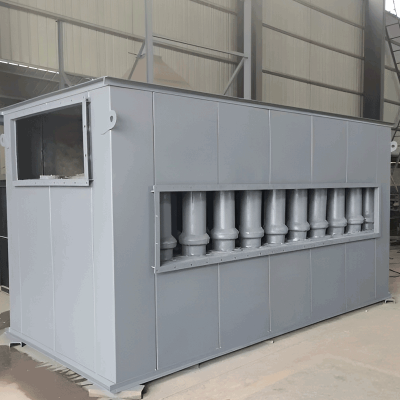

Industrial Cyclone Separator

Key Features of Cyclone Dust Collector

>High-Efficiency Separation – Removes up to 95% of large dust particles before they reach secondary filtration.
>No Filter Media Required – Uses centrifugal force instead of filter bags or cartridges, reducing maintenance costs.
>Handles High-Volume Dust Loads – Ideal for heavy-duty industrial applications with continuous dust generation.
>Durable & Low Maintenance – Typically constructed from steel, stainless steel, or heavy-duty plastic for long-term durability.
>Works as a Pre-Separator – Often used before baghouse dust collector or cartridge filters to extend their lifespan by reducing dust load.
>Standalone or Integrated System – Can function independently or be connected to a central dust collection system.

Components of Cyclone Dust Collector

1. Cyclone Chamber

>Cylindrical & Conical Body – The main housing where the swirling motion of air separates dust particles.
>Tangential Inlet – Positioned on the side to introduce air in a way that promotes a cyclone effect.
>Air Outlet (Clean Air Exhaust) – Located at the top, allowing lighter, cleaner air to exit.

2. Dust Collection System

>Dust Hopper – Collects separated dust and debris at the bottom of the cyclone.
>Rotary Airlock Valve (Optional) – Ensures controlled dust discharge while preventing air leakage.
>Dust Bin or Drum – Stores collected dust before disposal or further processing.

Industrial Cyclone Dust Collector
Industrial Cyclone Separator

3. Fan & Airflow System

>Induced Draft Fan – Creates the necessary airflow to pull dust-laden air into the cyclone.
>Ductwork – Connects the cyclone to the dust-producing machinery or central ventilation system.
>Exhaust Stack or Silencer (Optional) – Directs cleaned air outside or back into the facility with minimal noise.

4. Support & Control Components

>Structural Frame – Supports the cyclone and stabilizes the system.
>Differential Pressure Gauge (Optional) – Monitors airflow resistance, helping optimize performance.
>Control Panel (Optional) – Regulates fan speed, monitors dust levels, and automates system operation.

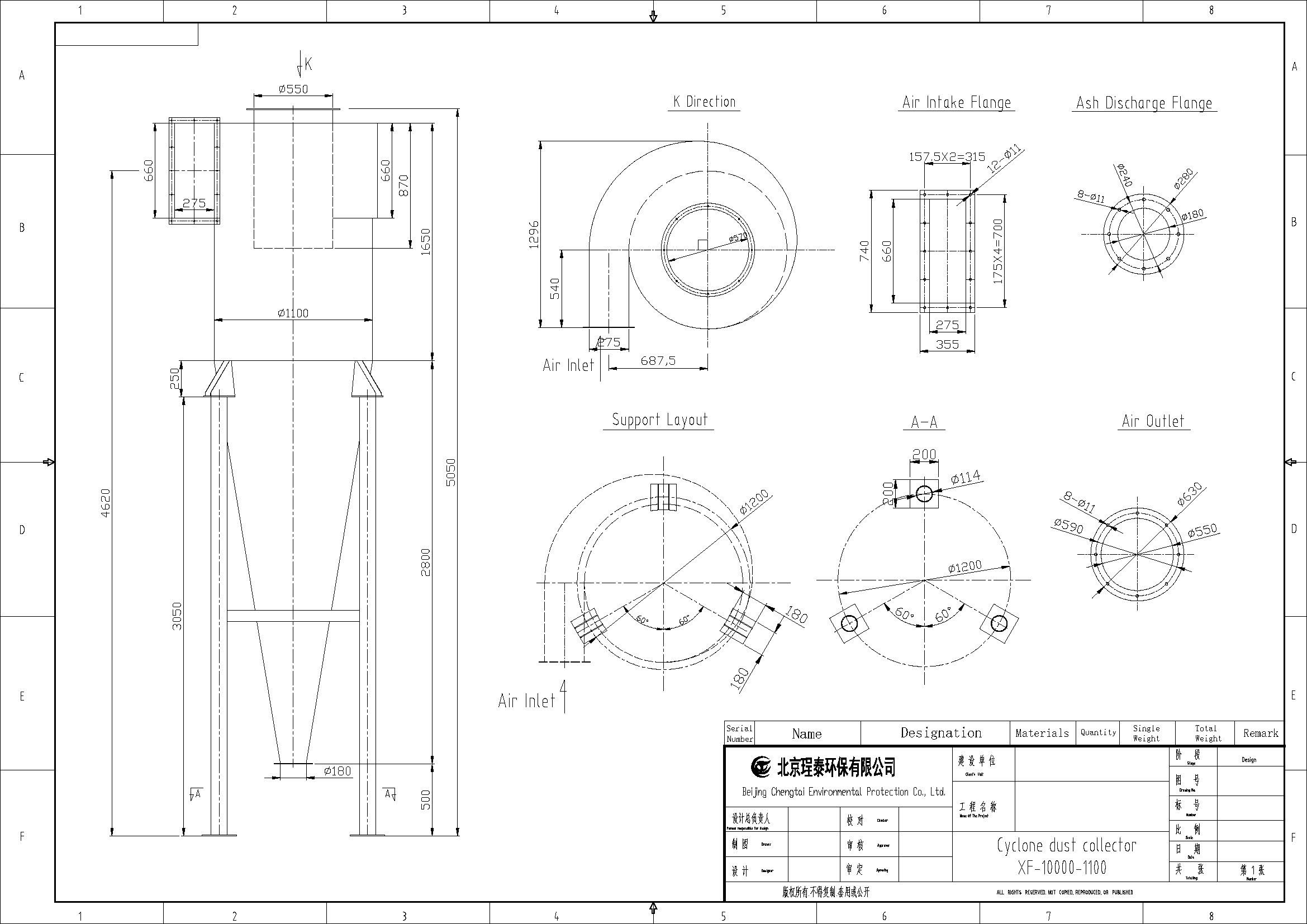

Industrial Cyclone Dust Collector Drawing

Industrial Cyclone Drawing

Cyclone Dust Collector CFM Chart

No.
Air Volume/m³/h
Air Volume/CFM
Diameter/mm
Height /mm
Inlet/mm
Outlet /mm
1
2500
1470
550
2800
330*140
280
2
3500
2060
650
3200
390*160
325
3
4500
2650
700
3300
420*180
350
4
6000
3530
850
4000
510*210
425
5
8000
4705
950
4400
570*240
475
6
10000
5880
1100
5050
660*275
550
7
12000
7060
1200
5400
720*300
600
8
15000
8820
1300
5800
780*325
650
9
17500
10290
1400
6200
840*350
700
10
21000
12350
1550
6850
930*385
775
11
24000
14120
1650
7250
990*413
825
12
29000
17060
1800
7850
1080*450
900
